Wooden Safe Doors
Specifications
| Feature | Details |
|---|---|
| Door Type | Wooden Fire Rated Door |
| Fire Rating | 60 minutes / 120 minutes |
| Shutter Thickness | 50 mm / 55 mm |
| Criteria | Stability, Integrity & Insulation |
| Testing Standards | BS 476 Part 20-22, IS 3614 Part 2 |
| Frame Size | 120 mm x 70 mm / 140 mm x 70 mm |
45mm Thick Wooden Fire Check Doors
The Safe Doors offer unparalleled security and durability, making them the ideal choice for both residential and commercial properties. Crafted with high-quality materials and advanced technology, our doors provide peace of mind while enhancing the aesthetic appeal of your space.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Reinforced steel |
| Fire Rating | Up to 2 hours |
| Warranty | 10 years |
The 45mm Thick Wooden Fire Check Doors from The Safe Doors are designed for optimal security, providing resistance against break-ins, fire, and extreme weather. With reinforced steel construction and a fire rating of up to 2 hours, they ensure safety without compromising style. Choose our doors for reliable protection and exceptional craftsmanship. Read More

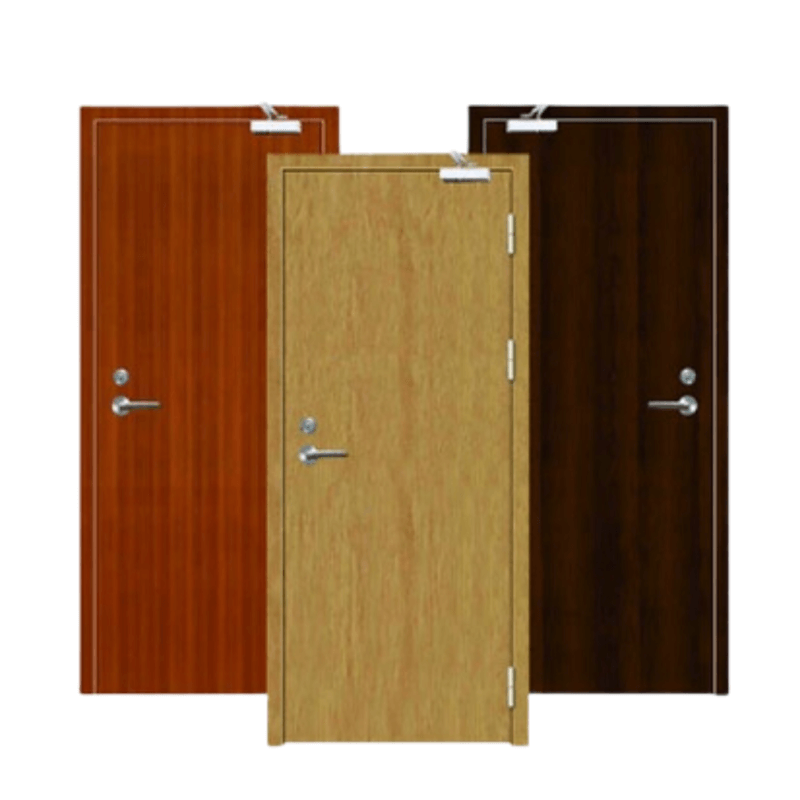

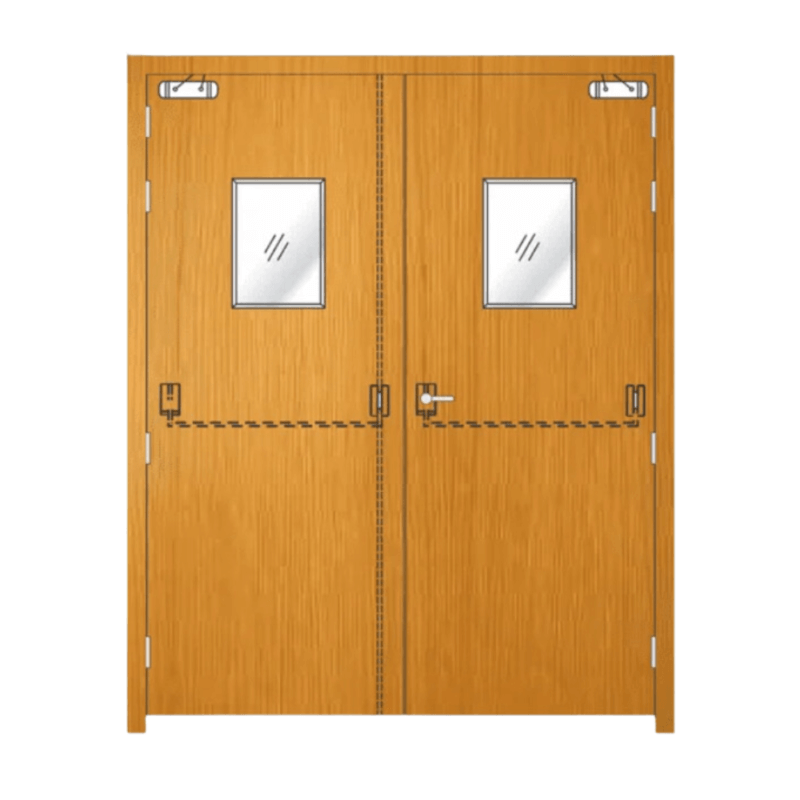

55mm Thick Wooden Fire Rated Doors
The Wooden Fire Rated Door features a 120-minute fire rating with a 55mm thick shutter made of hardwood Mirandi or Teak. It includes a hardwood frame, 3mm commercial ply or Teak Veneer facing, and insulation with fire-rated mineral wool and calcium silicate board.
Technical Specifications
| Feature | Details |
|---|---|
| Door Type | Wooden Fire Rated Door |
| Fire Rating | 120 minutes |
| Shutter Thickness | 55 mm |
Boost your safety with our Wooden Fire-Rated Door, built to resist fire while looking great in your home. It offers 120 minutes of fire protection, keeping you safe during emergencies. Enjoy high-quality design with options to match your style.
Construction Details
- Frame Material: Crafted from high-quality hardwood, such as Mirandi Teak, Teakwood, or Ivory Coast Teak, based on your requirements.
- Door Shutter: The internal frame is made of hardwood Teak, with a facing of 3 mm thick commercial plywood or veneered plywood on both sides.
- Insulation: Incorporates a sandwich-type fire-rated mineral wool treated with fire retardant paint, along with Calcium silicate board for added protection.
- Vision Panel: Optional 1-hour or 2-hour fire-rated clear glass for visibility without compromising safety.
- Shutter Thickness: Available in 50 mm or 55 mm options.

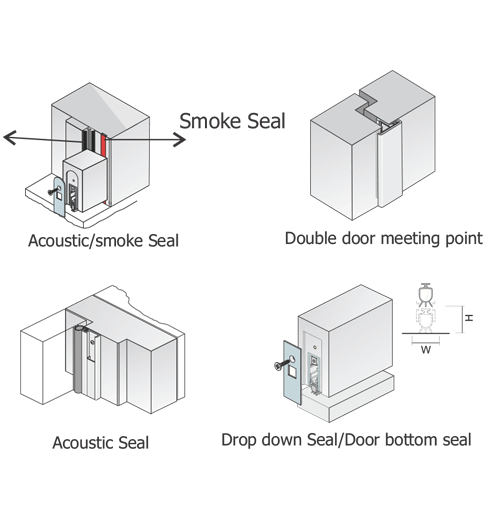

- Intumescent Seal: Equipped with a fire/smoke seal (20 x 4 mm or 10 x 4 mm) on all three sides of the door frame and shutters, except at the bottom.
This combination of materials and features ensures maximum safety and aesthetic appeal for your space.
Recommended Hardware
- Stainless Steel Ball Bearing Hinges: Made of SS 304, size 100 mm x 75 mm x 3 mm for smooth movement.
- Door Closer: Designed to be fire-rated for added safety.
- Tower Bolt / Flush Bolt: Provides extra security for the door.
Optional Hardware
- Mortise Dead Lock Set with Cylinder: Comes with a D-shaped pull handle for easy push and pull operations.
- Mortise Sash Lock with Cylinder: Includes a lever handle for convenient push and pull access.
- Fire Rated Panic Bar: Designed for push-side operation, ensuring quick exit during emergencies.
- Fire Rated External Panic Trim: Intended for pull-side operation, providing added safety and ease of use.
Recommended Hardware
- Stainless Steel Ball Bearing Hinges: Made from SS 304, measuring 100 mm x 75 mm x 3 mm, ensuring smooth door movement.
- Door Closer: Fire-rated for enhanced safety and security.
- Tower Bolt / Flush Bolt: Provides additional locking options for better security.
